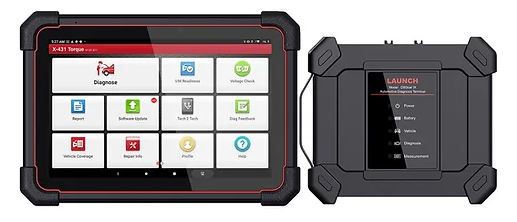

Launch X-431 Torque 5 (301190794)
(AES# L-Torque-5)
X-431 torque 5 is an advanced intelligent vehicle diagnostic device developed based on Android 10.0 system. It adopts 2.0GHz 4-core high-efficiency processor, 10.1-inch color display, 4GB ram + 128GB ROM large storage, and is equipped with high endurance battery to run faster, more stable and longer.
X-431 Torque 5 supports full-system fault diagnosis, with functions such as Read DTCs, Clear DTCs, Read Data stream, Special function, Actuation test, Coding, Matching and more. It supports CANFD\DOIP diagnostic protocol.
Features
- Full system & full function diagnosis
- Auto Detect VINs in minutes
- Bi-Directional Control/ Remote Diagnostic Function
- Dual band 5G & 2.4 G wireless connection with ultra-fast speeds
- Advanced vehicle protocols including DOIP (external diagnostic cable) CANFD etc.
- Code Assist Database by identifix
- Support X431 Fix repair information, driven by motor
- SGW Security gateway approved by FCA
- Supports 2-channel oscilloscope and multimeter functions
- More available software can be purchased via in-app Mall
- One-click upgrade for car models software
- Support USB Type C, USB Type A interface, etc
- OE Level U.S vehicle coverage as well as Asian, European coverage from 1996 and newer
Coverage
OE-level scan tool diagnostics for U.S., Asian, and European vehicles from 1996 and newer, including exotic vehicles, coverage details. Add-on modules (sold separately) available for ADAS Pro plus, ADAS mobile, battery testing, HD, immobilizer, lab scope, signal simulator, TPMS, videoscope.
Specifications
- Operation System Android 10.0
- CPU 2.0 GHz Quad-core
- Display 10.1-inch touch screen 1280*800
- Memory 4GB
- Storage 128GB
- Camera Front 5 MP, Rear 8 MP
- Working Temperature 0℃~50℃
- Storage Temperature -20℃--70℃-
- Dimension 274*190*40.5 (mm)/ 10.79*7.48*1.59 (inch)
Contents
• X-431 Torque 5 tablet (does not include a carrying case)
• HD15F to OBDII 16 male integrated test connector
• HDB15F to HDB15F test main line (with DC)
• X431 DBSCAR IX diagnostic connector
• HT30 test line
• Needle Set (Colored 4mm Female+20 needle+2 screw head)
• Crocodile clip，black
• Crocodile clip，red
• Multimeter probe black
• Multimeter probe red
• Power adapter
• Universal PIN envelope
• Multilingual Quick Start
• Type A to type C USB data cable
