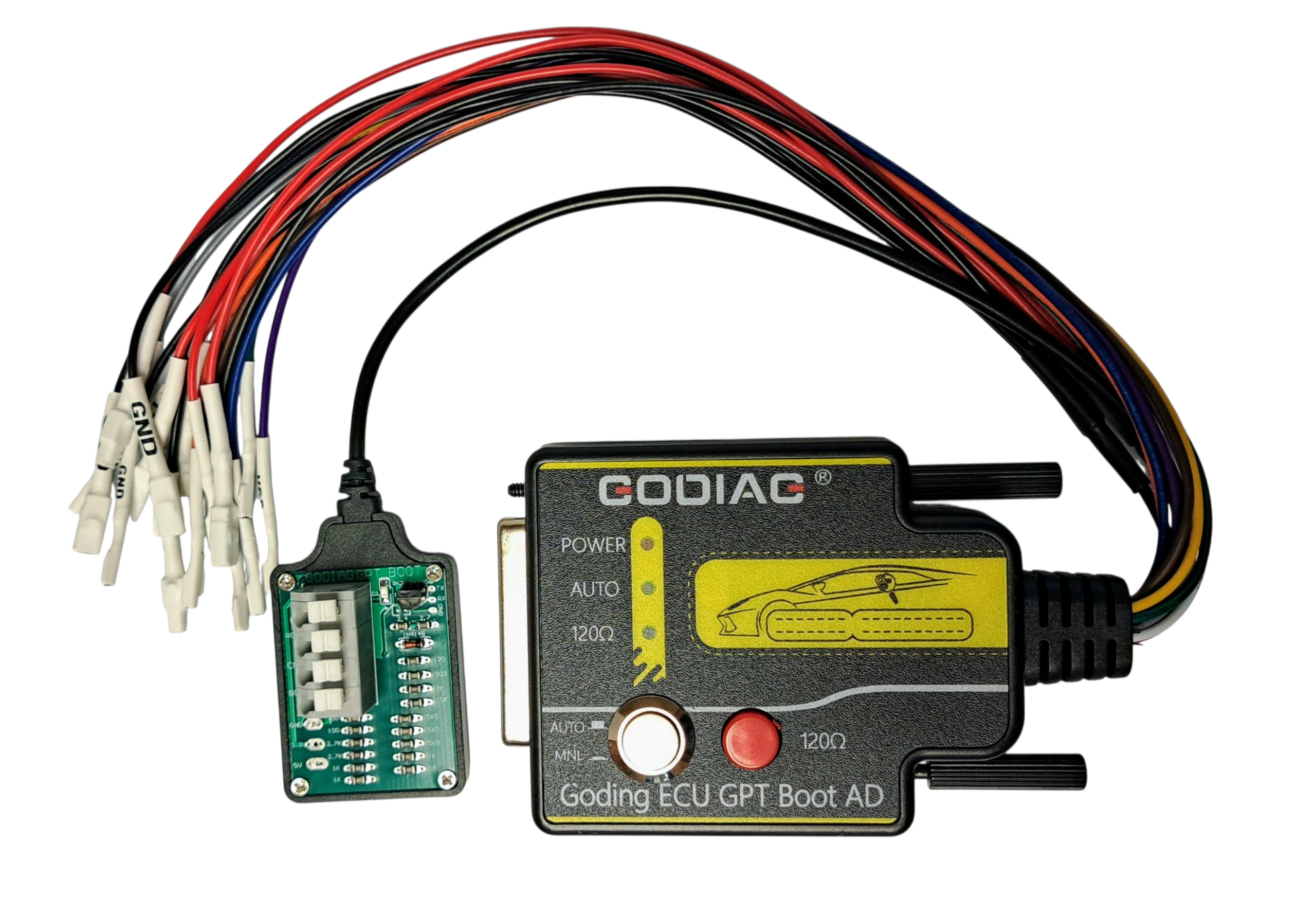

GODIAG ECU GPT Boot AD ECU Connector
GODIAG ECU GPT Boot AD programming adapter can help customers read and write ECU data without disassembling the ECU using the OBD2 Bench or GTP Bench method or disassembling the ECU and using the Boot method. This product is equipped with a short-circuit-proof BOOT resistance board connection line to protect the ECU. Customers can use it with J2534 devices and PCMFLash software.
1. Support GPT to read and write data without disassembling the ECU.
2. Support ECU opening BOOT method to read and write data
3. Support ECU conversion to OBD2 mode to read and write data

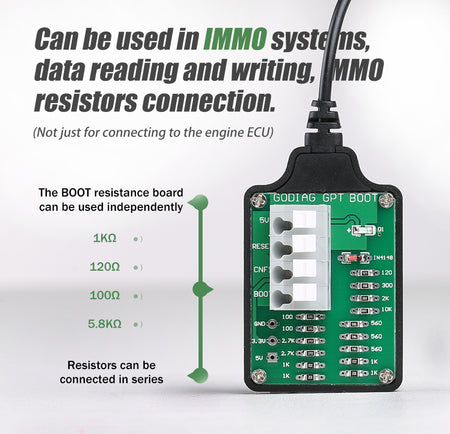

4. Equipped with BOOT resistance board connecting cable [anti-lost resistor design]
5. Support RESET, BOOT, CNF1, GPT1, GPT2, 5V, 3.3V, VPP, GND.
6. Support PCMFlash automatic control of ignition power supply
7. Support manual ignition power control
8. CANbus is equipped with a switch to freely select the 120Ω resistor
9. ECU dedicated connection terminal.
10. The ECU interface cable is labeled
Features
• Toggle Automatic or Manual ignition control
• Add 120 ohm resistor for CAN Bus
• Built-in resistor board
Contents
- GODIAG ECU GPT Boot AD Programming Adapter
- OBD2 to DB25 Cable
- 8 x Silicone Wires
