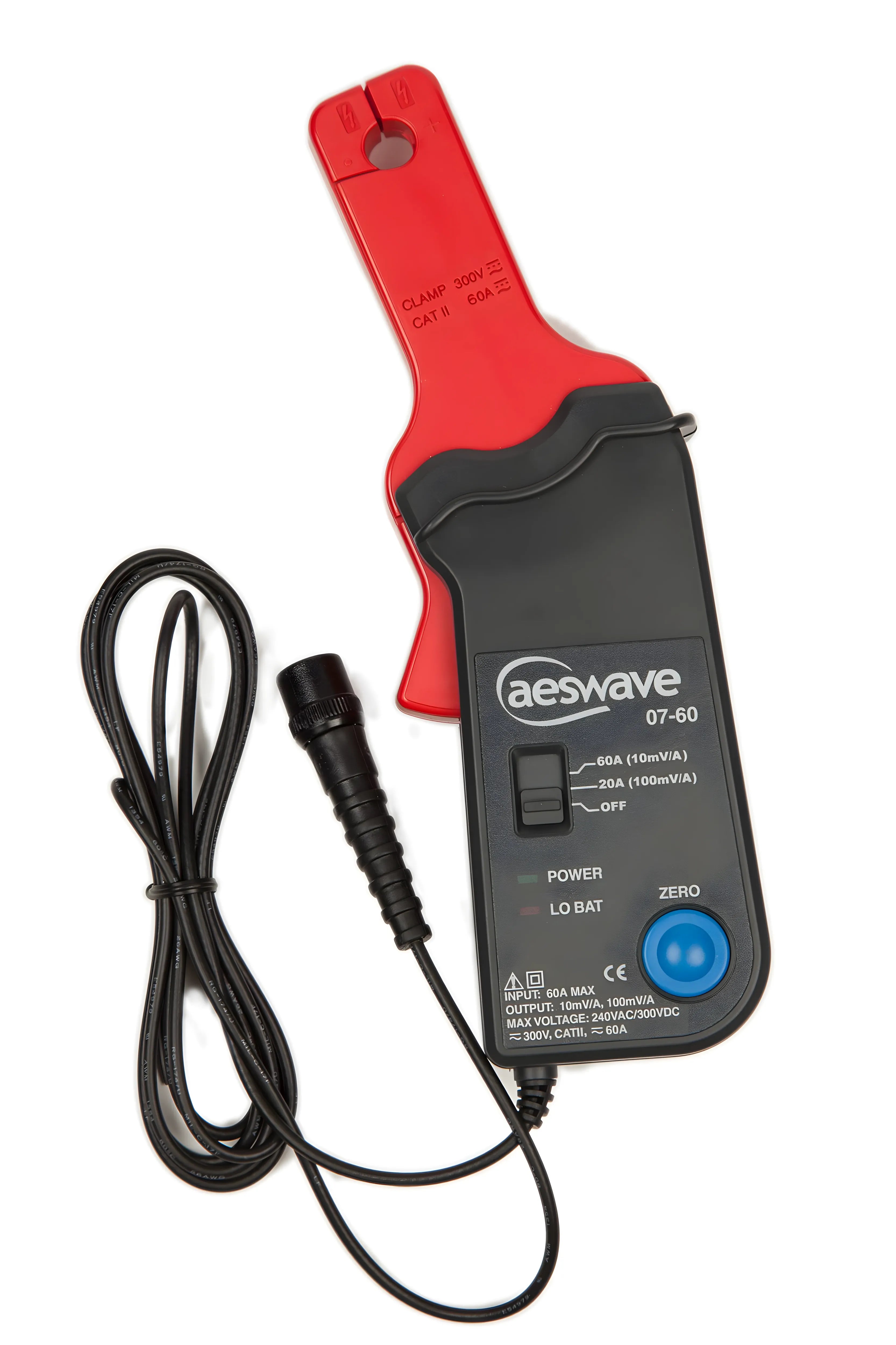

Current Probe, Low range, with BNC

This cost-effective low current probe is ideal for capturing waveforms from fuel pumps, injectors, relays, ignition and more. This probe can be used with just about any meter or lab scope capable of measuring DC voltage.

This low amp current probe can be used with scopes and meters such as the Pico, Fluke scopes, Interro, Vetronix, OTC, Tektronix, ATS. In essence it can be used with any scope/meter that displays a voltage in digital or waveform format.

This amp probe features shielded wire, shielded housing, and insulated BNC ensure an accurate signal.

Features
This current probe has the smallest nose (1" x 1/2") we have found.
Zero push button (not wheel).
Low battery indicator.
Lead terminates to banana plugs.

Specifications
Size at end of jaw: 1" wide x 1/2" thick x 2-1/4" long
Conductor opening: 9mm
Test Lead: 6-feet long, terminates to insulated BNC
Probe Housing: 7-3/4" x 2-1/2"
Accuracy: ranges from 1.5% to 2% under 20A and up to 8% over 20A.
Range: 10mA-60A
Frequency response: Up to 20KHz.
1-year warranty.
