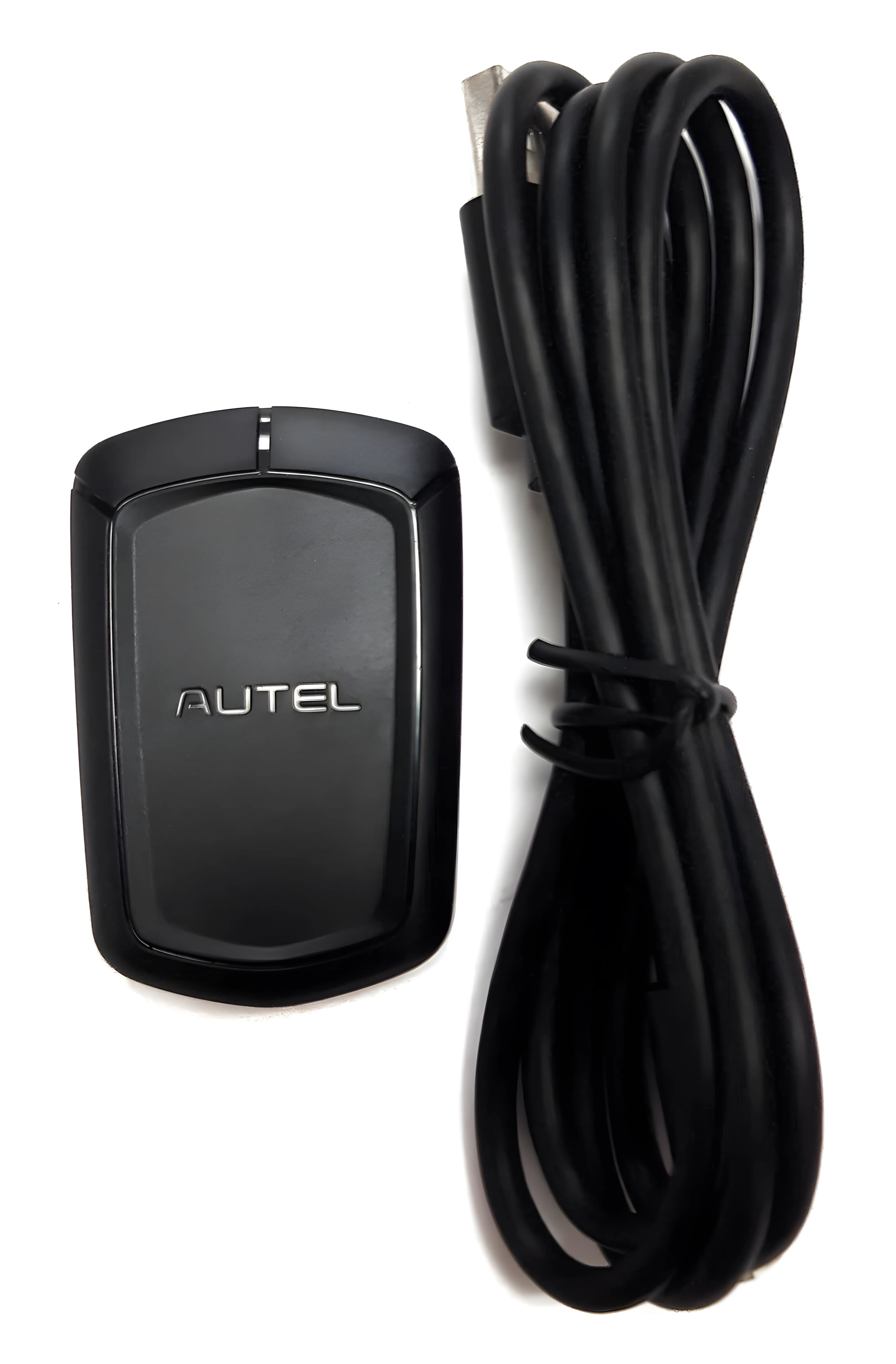

Autel APB112 Smart Key Emulator
For 46/4D Chip Emulation | Toyota Smart Key Support | Use with IM608/IM508 + XP400
The Autel APB112 is a smart key emulator module designed for use with Autel MaxiIM IM508, IM608, or IM608Pro paired with the XP400 or XP400Pro key programmers. It collects data directly from the ignition coil, helping technicians identify ignition-related issues and decode key chip data.
Once captured, the APB112 can simulate various key chips, making it a critical tool for all-key-lost situations, especially on Toyota/Lexus smart key systems.
The APB112 must be used with the XP400 or the XP400pro in conjunction with a MaxiIM Key Programming Tablets: IM608, IM608pro, IM508.
• Smart key emulator
• Compatible with IM608, IM608pro, IM508.
• Compatible with XP400
• Not compatible with XP200
• 46, 4D data collection
• 46 smart key password calculation
• 46 chip simulation
• Toyota 4D (94/D4, 98) smart key emulation
• Toyota H (88/A8, A9, 39) smart key emulation
• Collects data from ignition coil
• Identify ignition coil troubles
• Decode vehicle key chip data
• Simulate vehicle key chip (ex - 4D chip)
• Must be used with an Autel diagnostic tool
• Toyota/Lexus smart key all key lost
• Chip decoding (Hyundai 46)
