Dual WPS600C Hydraulic Kit (PQ108)

(AES# pt-PQ108)

With high accuracy and a wide measuring range, the WPS600C Hydraulic Pressure Transducer connects to your PicoScope for convenient analysis and diagnosis of pressurized systems.

• Accurately measure up to 600 bar (8700 psi)
• Ultra-fast 100 microsecond response time (0% to 90% of full scale)
• Internal rechargeable LiPo battery
• Industry-standard M16 x 2 test point connector
• Auto zeroing
• High noise immunity
• Temperature compensated

Not for continuous operation.

Two pressure ranges for increased versatility
The two pressure ranges of the WPS600C allow accurate measurement and diagnosis of permanent and non-permanent automotive and industrial hydraulic systems.

Range 1 = 0 to 600 bar (approxi 8700 psi) gives you high resolution and accuracy for high-pressure tests in hydraulic systems.

Range 2 = 0 to 60 bar (approx 870 psi), ideal for low-pressure hydraulic systems and oil pumps.

Typical Uses

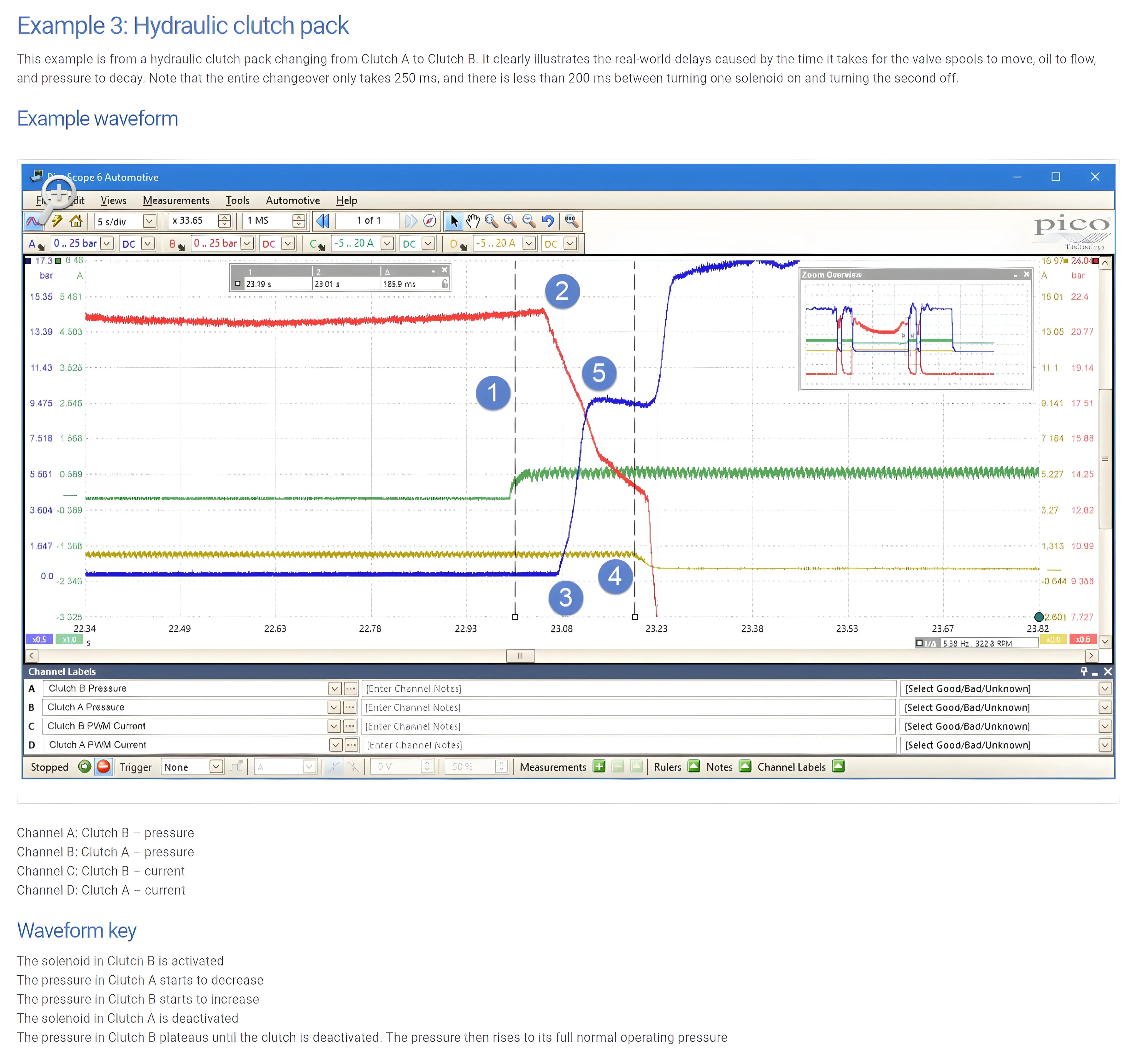

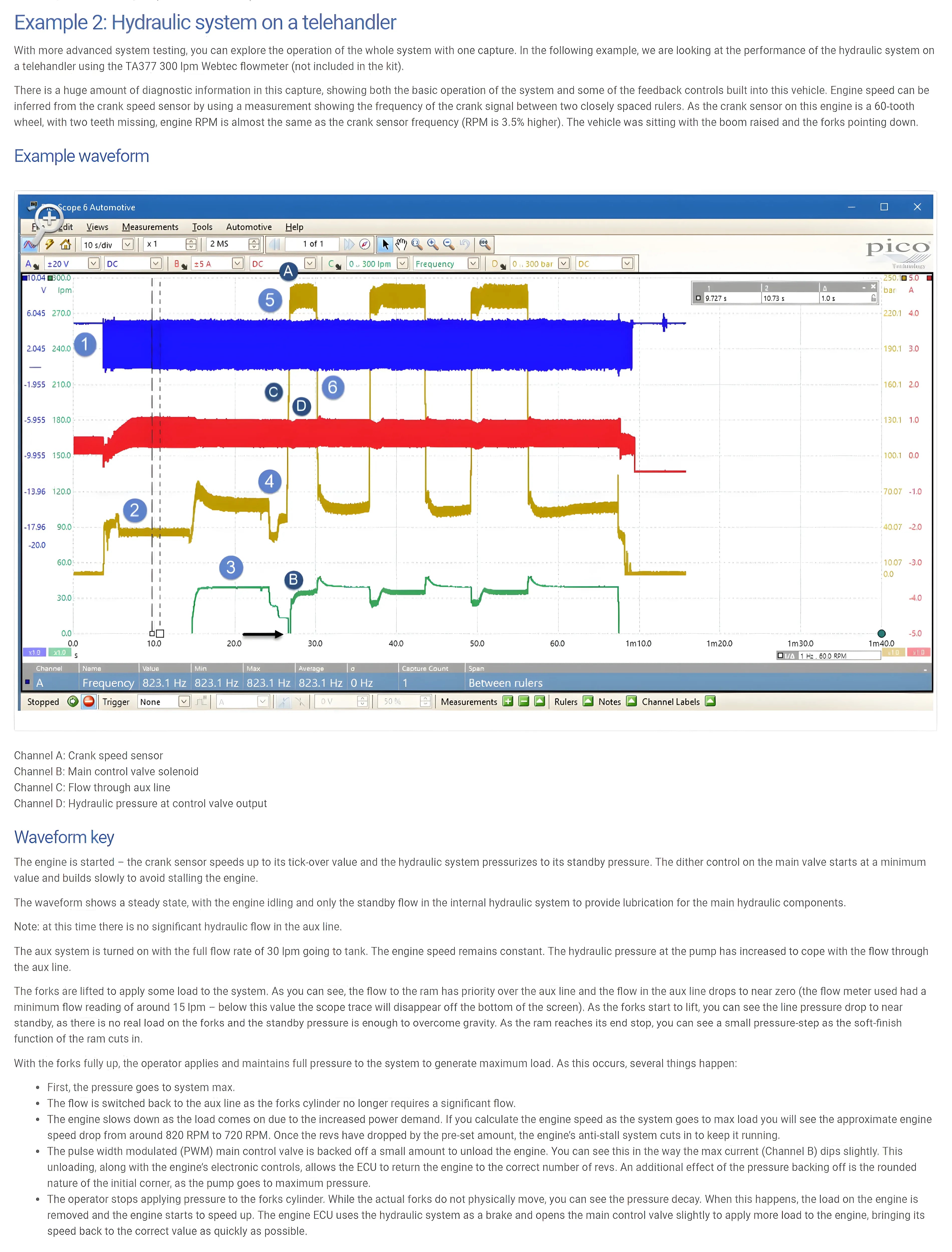

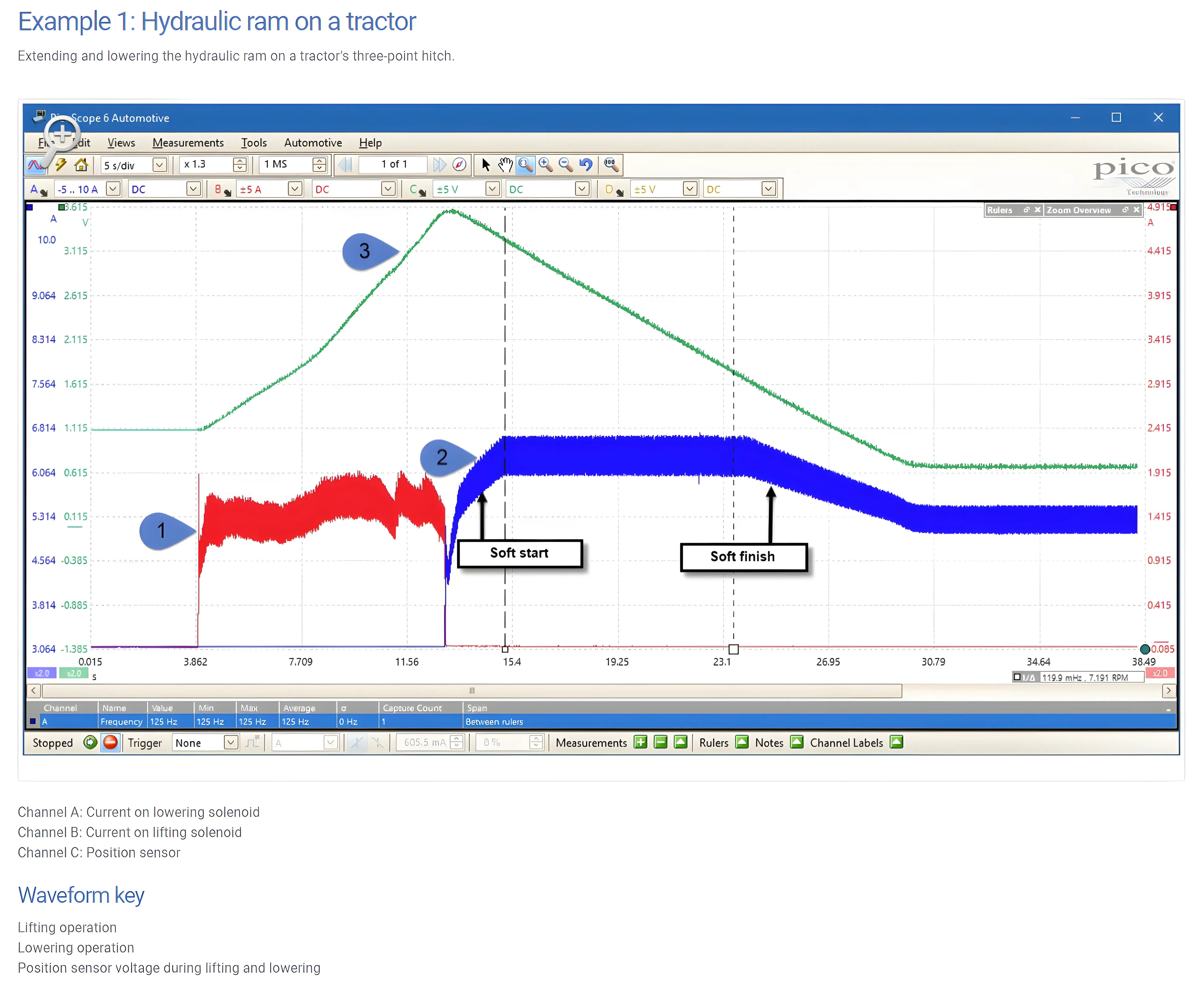

The WPS600C Hydraulic Kit, when used with the Pico 4-Channel 4425 Diesel Kit (AES# pt-pp924), is designed for you to be able to diagnose problems on your equipment, relating to either engine or hydraulics. Allowing pressures up to 600 bar to be monitored against time enables the technician to connect the WPS600C to the relevant hydraulic test port, then view activity and transitions in hydraulic pressure that were never previously visible with conventional gauges.

• Hydraulic pump performance
• Hydraulic valve switching activity
• Hydraulic pressure control valve performance
• Hydraulic pressure decay
• Residual hydraulic pressure

Adapters and Hoses
Due to the wide range of hydraulic fittings in use we do not supply any specific adapters or hoses for use with this product. Those provided with the low pressure WPS500X are not suitable for use with the higher pressure hydraulic systems. Contact your favorite hydraulic hose supplier for additional fittings or custom hose assemblies you may require to suit your specific system.

Nothing compares to the WPS600C
It is not unusual to require a different pressure transducer for each diagnostic test you want to run. The WPS600C eliminates this need by giving you one ultra-high resolution transducer that can be used for a multitude of hydraulic diagnostics applications. With two pressure ranges and a rechargeable Li-Po battery, all enclosed in a durable housing, the WPS600C is the cost-effective answer to pressure analysis.

When price, performance and versatility matter, nothing compares to the WPS600C Pressure Transducer.

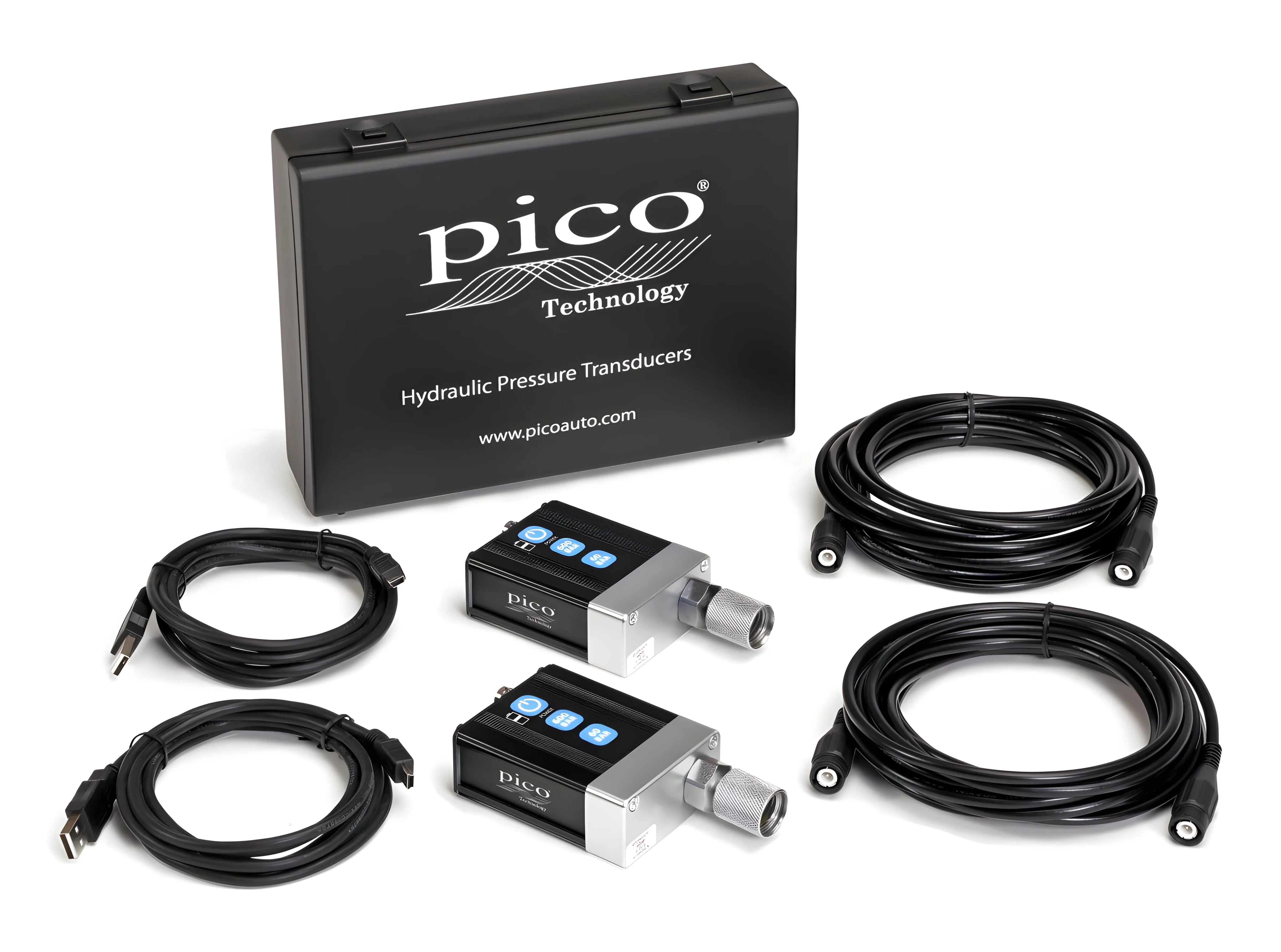

Contents
2 - WPS600C pressure transducer
2 - BNC to BNC cables (2 meters long)
2 - USB charging cables
1 - User’s Guide
1 - Carry case

Lab Scope Bundle
The Pico Engine and Hydraulics Diagnostic Kit (AES# pt-PQ117) combines the Dual WPS600C Hydraulic Kit with Pico's 4-Channel 4425 Diesel Kit.
